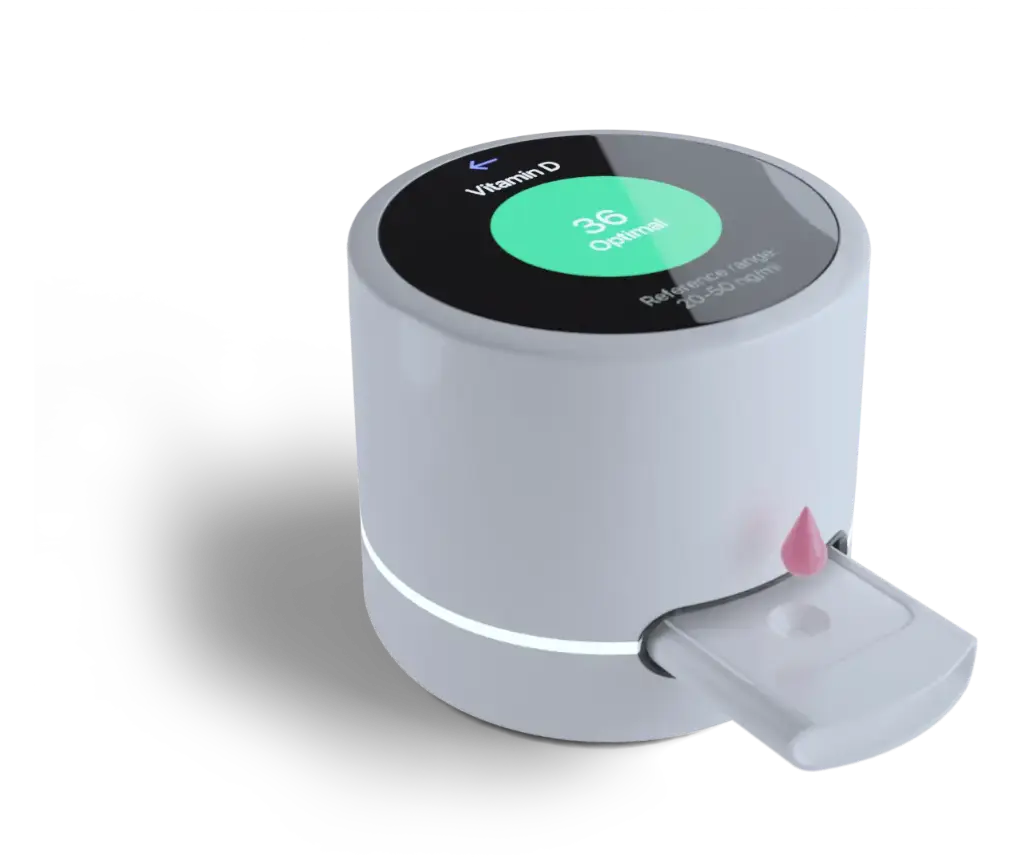

Igloo Reader Pro
Technology: Lateral flow, microarray, colorimetric, fluorescence, dry chemistry
Igloo Reader Pro is a compact, all-in-one analyzer for qualitative and quantitative testing using lateral flow and advanced microarray-based formats. Designed for professional environments and point-of-care settings, it supports a wide range of diagnostic tests — from infectious disease screening and cardiac markers to hormone profiling, drug abuse panels, and allergy diagnostics.
By combining automated calibration, cloud integration, and digital data export, Igloo Pro brings lab-grade performance to decentralized environments — enabling healthcare professionals to deliver fast, reliable results anywhere.
How to use:
- Insert test cassette into the matching adapter
- Place adapter into the reader
- Igloo automatically identifies the test via barcode/QR and begins analysis
- Results appear on screen and can be exported, printed, or stored
Software & Integration:
- Dx365 Cloud: Remote calibration management, test updates, and analytics
- Dx365 Care App: Mobile access (Android/iOS) for result review and QR exports
- Dx365 Care Desktop: Desktop interface for lab integration
Benefits:
-
Compact and portable
Lightweight form factor; up to 100 measurements per charge -
Accurate and reliable
Automated self-calibration before every test- CV < 2% inter-reader
- CV < 3% intra-reader
-
Always connected
Built-in Wi-Fi, Bluetooth, USB-C for seamless data sync and integration -
Universal platform
Supports colorimetric and fluorescent tests
Compatible with various cassette formats and multistrip setups -
Affordable
Low-cost, scalable design from hardware to manufacturing -
Digital and secure
Cloud-based calibration updates, encrypted data storage, and multi-format result export (.pdf, .xls) -
Versatile and future-proof
Easily updatable test menu via Dx365 Cloud, with full remote support
Technical Data:
| Parameter | Specification |
|---|---|
| Device dimensions | 87.5 × 87.5 × 91 mm (L × W × H) |
| Weight | Approx. 400 g |
| Measurement duration | Few seconds (excluding incubation time) |
| Test methods supported | Microarray, colorimetry, fluorescence, dry chemistry, quantum dots, microfluids |
| Sample types | Whole blood, capillary blood, serum, plasma, urine, stool, saliva, hair |
| Result storage | Up to 10,000 results |
| Battery | Rechargeable lithium battery, up to 24 hours of continuous testing per charge |
| Connectivity | USB-C, Wi-Fi (802.11 b/g/n), Bluetooth, API/LIMS integration |
| Power input | 5V, 1400 mA via USB-C |
| Operating temperature | 5 – 40°C (20–80% RH, non-condensing) |
| Storage conditions | 0 – 45°C (20–80% RH, non-condensing) |
| Protection class | IP20 |
| Self-calibration | Automated before each measurement |
| Certification | CE-marked, RoHS compliant, RED 2014/53/EU |
Supported Test Technologies:
| Technology Type | Description / Capability |
|---|---|
| Microarray | Supports multiplexed detection with high analytical sensitivity and specificity |
| Fluorescence |
High-sensitivity detection using fluorescent markers, including quantum dots and immunoassays |
| Quantum Dots | Advanced fluorescence nanotechnology for ultra-sensitive biomarker detection |
| Dry Chemistry | Reagent-free colorimetric testing for rapid qualitative or semi-quantitative results |
| Microfluids | Compact, integrated fluid handling for miniaturized sample processing and analysis |
| Colorimetric | Visual detection methods based on color intensity for simple and robust measurements |
Standard Kit Contents:
- 1 × Igloo Reader Pro
- 1 × USB-A to USB-C Cable
- Electronic User Manual
- Adapters and QC test kits sold separately
